3M Road Studs / Cat Eyes

Raised Pavement Marker (RPM)

Description : 3M RPM is a unique, easy to apply road safety device, specifically engineered for low-light Indian road conditions. With leading retro-reflective properties, unbeatable all-weather durability and proven performance, 3M RPM gives you excellent visibility in harsh road conditions.

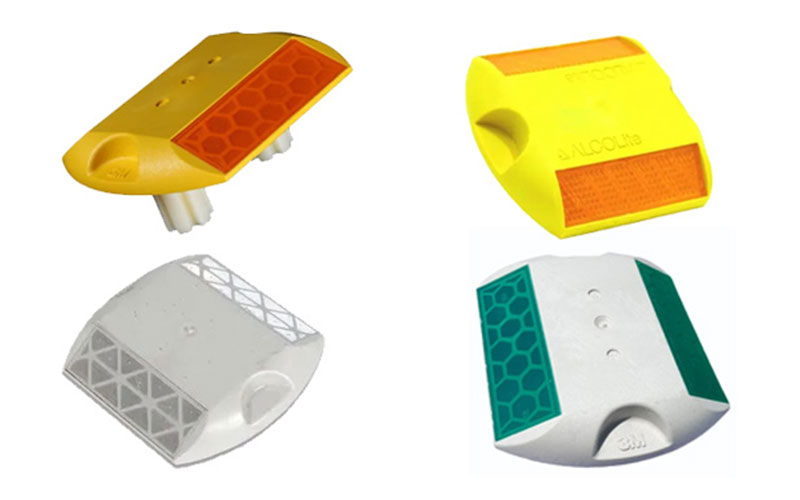

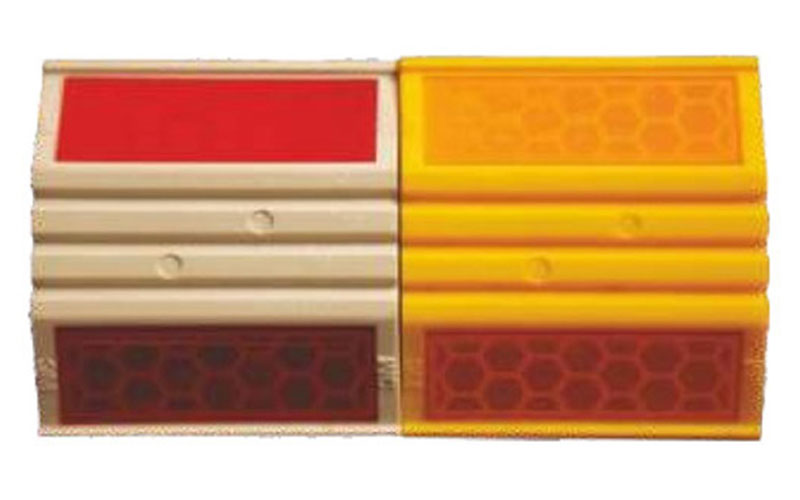

Twin Molded Shank

Reflective Area: 16 sq.cm
Height: 16 ± 0.1mm

Width: 101.1 ± 0.1mm
Slope: 30.5 ± 0.1 degrees

Length: 88.9 ± 0.1mm
Shank Length: 30 ± 2mm

Load Bearing Capacity: 16 tons
Shank Diamter: 20mm

Lens color: Red, Yellow, White, Green, Red & White

Next Generation

Reflective Area: 16 sq.cm
Height: 18mm ± 0.8mm

Width: 80 mm ± 0.5mm
Slope: 30.5 ± 0.1 degrees
Load Bearing Capacity: 13.5 tons

Length: 89±0.5mm
Lens color:Red, Yellow, Wihte

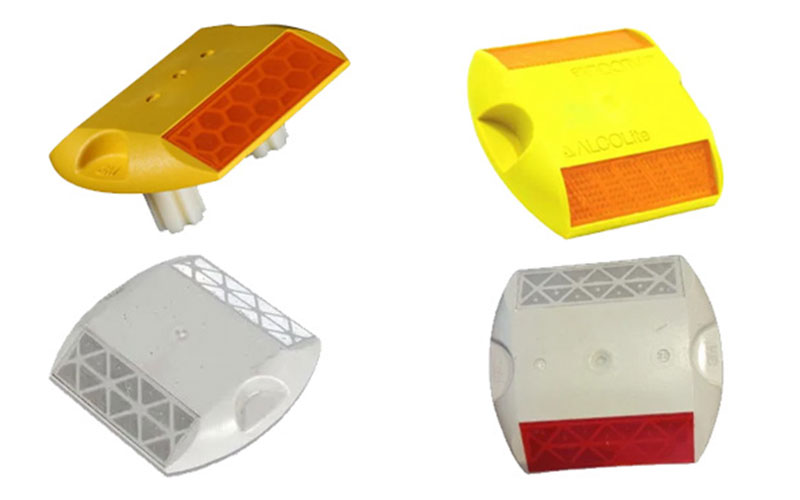

ILC Non Shank

Reflective Area: 16 sq.cm
Height: 18mm ± 0.8mm

Width: 101.10.1mm
Slope: 30.5 ± 0.1 degrees
Lens color: Red, White, Red & White, Yellow

Length: 88.9 0.1mm

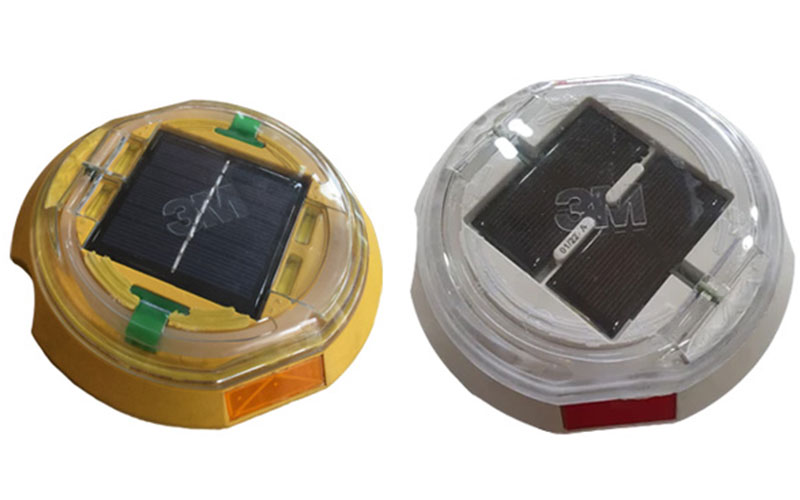

Solar Raised Pavement Marker

Diameter: 136 ± 4mm
Height: 65 ± 2mm

Shank Length: 40mm
Shank Breakage Strength: 820 kgf
Variants: Yellow Body & White Body

Shank Diameter: 25mm

Polycarbonate

Reflective Area:16 sq.cm
Height: 18mm ± 0.8mm

Width: 101.1 ± 0.1mm
Slope: 30.5 ± 0.1 degrees
Lens color: Red, White, Red & White, Yellow

Length: 88.9±0.1mm.
Load Bearing Capacity: 13.5 tons

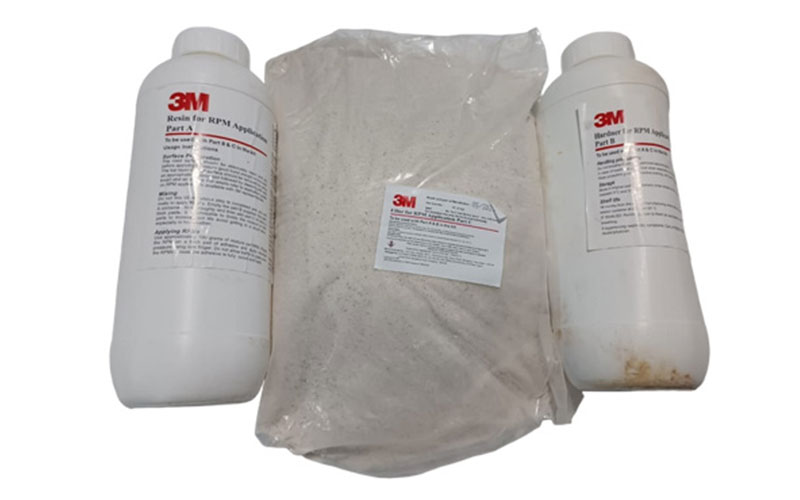

Epoxy Solution for RPM & FMM fixing

Part A - Resin-1 Kg pack
Part B - Hardener - 1/2 Kg pack
Part C - Filler - 3 Kg pack

Other instruction:
1.Divide the whole kit in mixture of 2-3 parts. You will not be able to us it after 15-30 mins
2.Whole kit is sufficient to apply around 45 RPMs
3.Final setting time is typically 40-55 minutes (could be longer at lower temperatures)

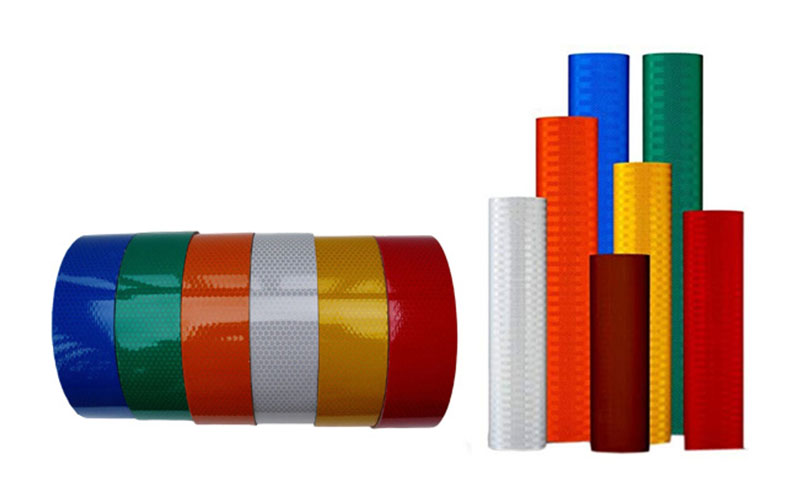

3M Reflective Sheeting

Product: Engineer Grade Prismatic
Code: 3430

Description:
3M™ Engineer Grade Prismatic Reflective Sheeting Series 3430 is a non-metalized microprismatic lens retroreflective sheeting designed for production of reflective commercial signs and noncritical traffic control signs that are exposed vertically in service. Series 3430 sheeting can easily be identified by the visible integral "EGP" marking.

Reflective Area of Usage:
NH/Sh/Rural DL coads/city/urban
Size can be customized as per requirement

3M™ Median Marker

Description:
3M Median Marker products are an Indian Innovation to enhance median visibility under extremely harsh condition. This revolutionary product from 3M combines superior material with high visibility retro-reflective sheeting to give medians clearer definition in Indian road conditions.

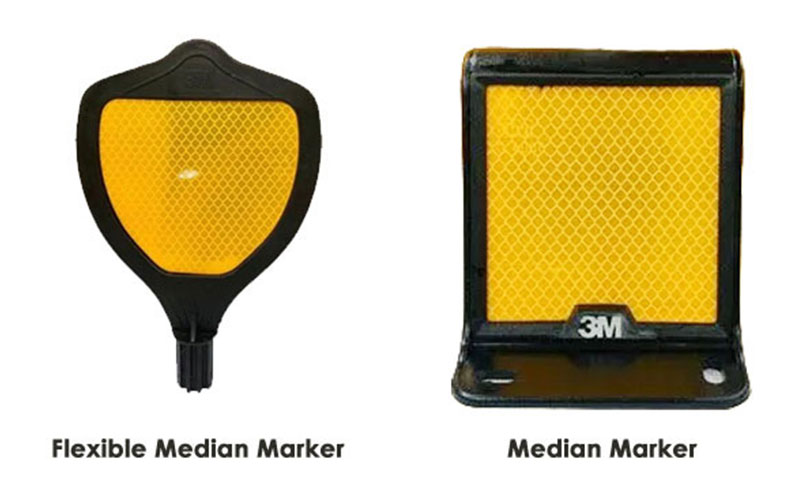

Flexible Median Marker:
Body Thickness: 6.5mm
Reflective area: 90sqcm
Shank Depth: 30mm
Total Hight: 180mm

Median Marker
Length: 100mm
Width: 100mm
Impact strength: 600J/m
Height: 150mm

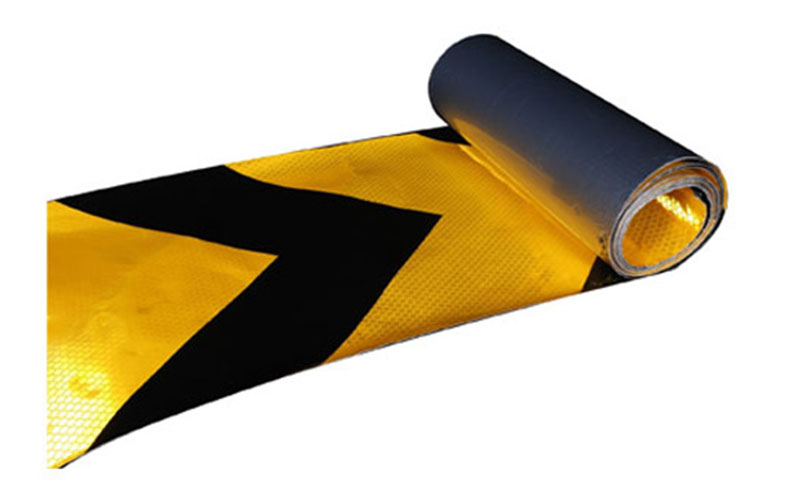

3M™ Aluminium Backed Flexible Prismatic

Description:
3M AFP is a new generation flexible sheeting sheeting that is designed for high visibility in harsh road condition. It can be easily applied on rough concrete surfaces and trees. Also, ensures optimum visibility of critical road elements.

Size and variants: Slant, Arrow, Plain

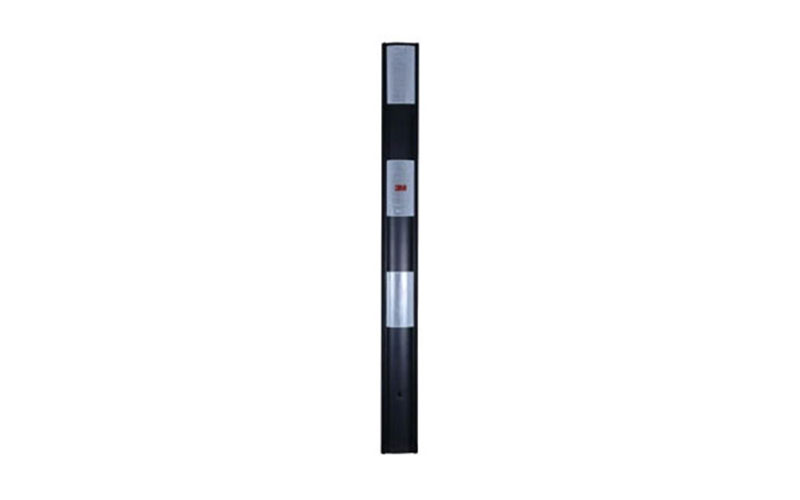

3M™ Delineator

Description:
3M Delineator is engineered to deliver years of all-weather visibility, safety, durability and elegance. It is an innovative product and gives unmatched visibility and reliable performance.

Impact Strength: 600J/m.
Thickness: 80mm
Base Depth: 300mm
Height: 800mm

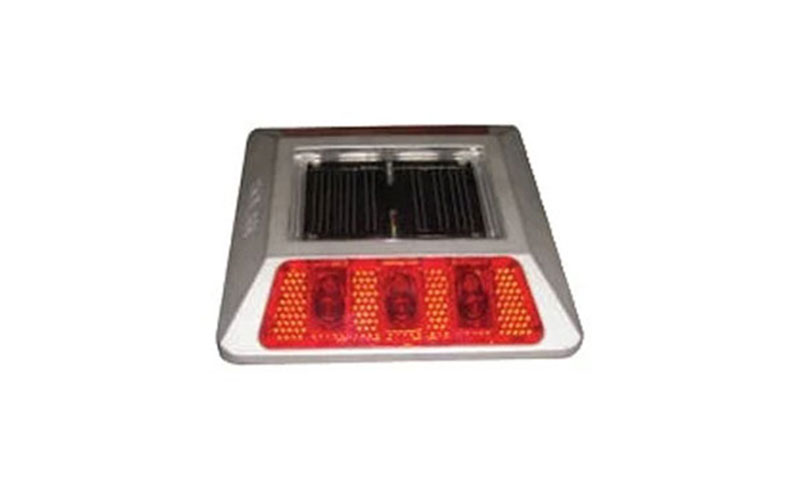

Solar Road Stud

With shank & without shank
Material: Acrylic reflector + pc cap + aluminium frame

Size: 132x122x75mm
Resistance: 30tons
Water Proof: < IP68
Visual Distance: 1000m

After Full charge: 48hrs or steady more than 12 hours

Power Supply: Solar panel 0.3 W45X65mm, NI-MH battery 1.2v/800mah

Led color: Red/White/Yellow

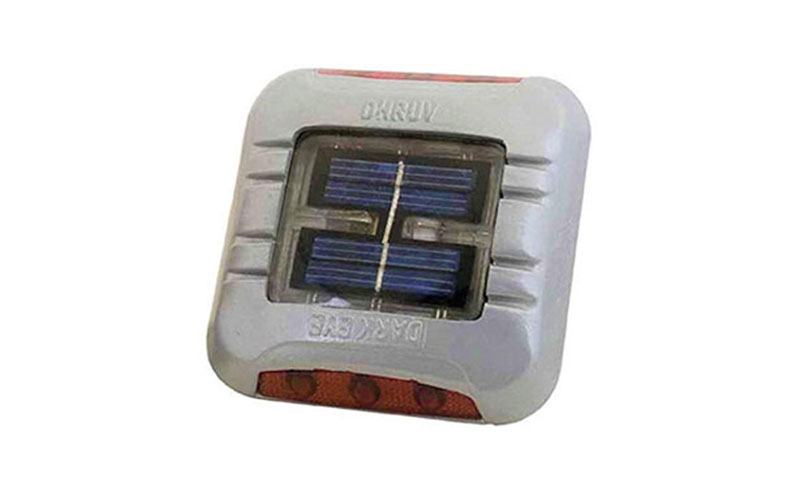

Dhruv Solar Stud

Size: 125mmx125mmx25mm(with a shank of 65mm)

Life Span: 3-5 yrs

Weight Bearing Capacity: 10tons approx

Working time: 3to4 days after fully charged

Charging Time: 5to6hours from direct sun light

Led color: Red/Blue/Green/Yellow/White
